1. Product Overview

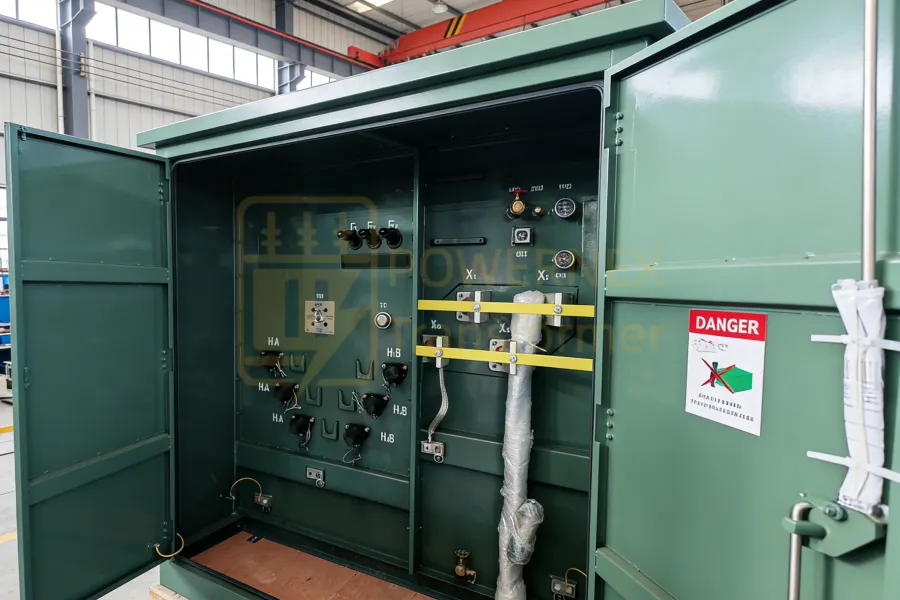

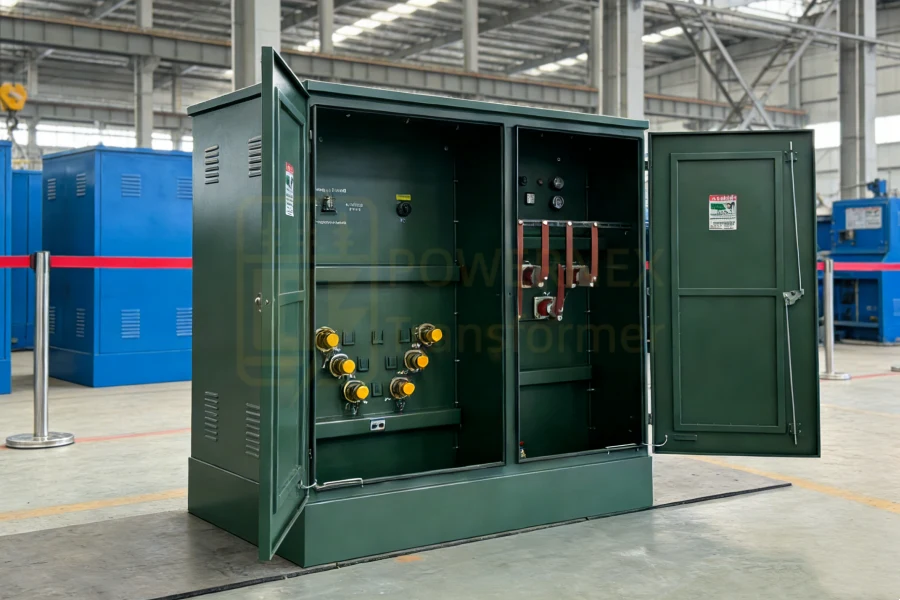

The PowerNex 1500 kVA Three Phase Pad Mounted Power Transformer is specifically designed for utility, industrial, and EPC projects across North and South America. It is suitable for both underground and outdoor distribution systems, offering input voltage options of 13.2kV, 13.8kV, 24.9kV, and 34.5kV, with an output of 480Y/277V.
This 1500 kVA transformer provides high efficiency, low energy loss, and long-term reliable operation. Engineered with high-quality silicon steel cores, premium copper or aluminum windings, and advanced oil insulation systems, the transformer is built to withstand harsh environments and ensure stable performance.
PowerNex 1500 kVA pad mounted transformers are widely used in utility distribution networks, industrial parks, high-load commercial facilities, and large EPC projects. As a factory-direct product from China, they offer competitive global wholesale pricing and customizable options to meet specific voltage, capacity, size, and installation requirements.
2. Key Features
-
High Reliability: Advanced manufacturing process and premium materials for extreme environments
-
Global Certifications: Compliant with ANSI, IEEE, IEC, CSA, ISO9001, and CE standards
-
Energy Efficient: Low no-load and load losses to minimize operating costs
-
Multi-Purpose Applications: Suitable for industrial, commercial, utility, and EPC projects
-
Customizable Design: Multiple input/output voltage combinations, capacities, and enclosure sizes
-
Safety Protection: IP54-rated protection, waterproof, dustproof, and corrosion-resistant
3. Technical Specifications
| Parameter | Description | Notes |
|---|---|---|
| Capacity | 1500 kVA | Customizable 50–5000 kVA |
| Three-Phase Input Voltage | 13.2kV / 13.8kV / 24.9kV / 34.5kV | High-voltage side |
| Three-Phase Output Voltage | 480Y/277V | Low-voltage side; can be customized to 208Y/120V, 600Y/347V |
| 1500 kVA Transformer Amps | HV side 62.5–114 A / LV side 1804–4167 A | Depends on voltage level |
| 1500 kVA Pad Mounted Transformer Dimensions | L 2.4–2.8 m × W 1.2–1.5 m × H 2.0–2.3 m | Customizable per project |
| 1500 kVA Pad Mounted Transformer Weight | 4,500–5,200 kg | Depending on material and cooling method |
| Cooling Type | ONAN (Oil Natural Air Natural), ONAF (Oil Natural Air Forced) | Optional cooling configuration |
| Temperature Rise | 65–75°C | High-temperature stable operation |
| Losses | Low no-load and load losses | Energy-saving design |
| Noise Level | ≤55 dB | Optional low-noise model |
| Protection Level | IP54 | Suitable for outdoor and underground installation |

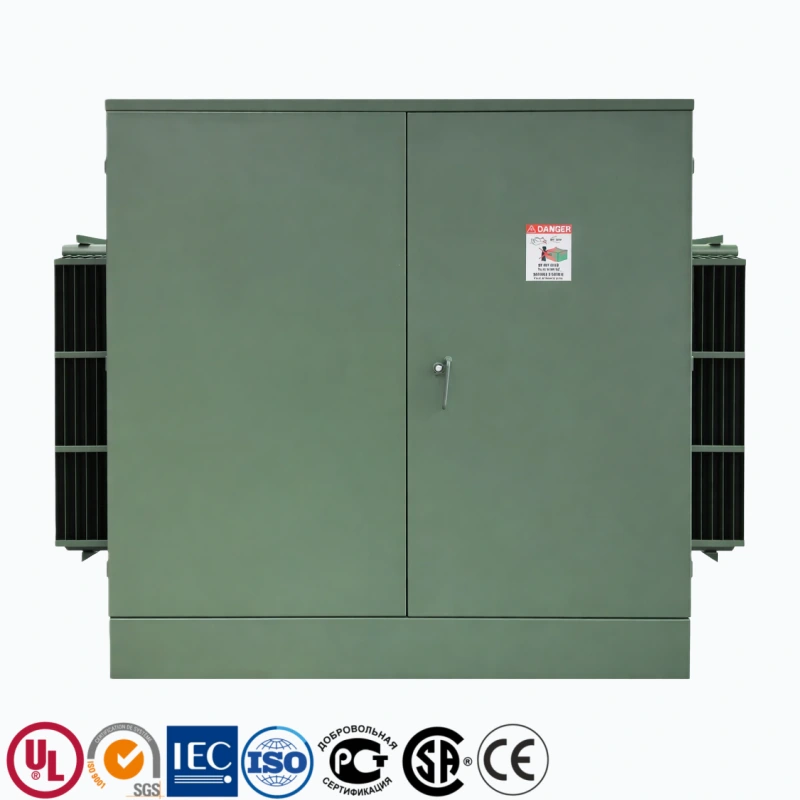

| Certifications | ANSI, IEEE, IEC, CSA, ISO9001, CE | Globally recognized |
4. 1500 kVA Transformer Amps Explanation
The rated current of the 1500 kVA transformer (1500 kVA transformer amps) can be calculated as follows:
-
Low-voltage side (480Y/277V) = 1500 × 1000 ÷ (√3 × 480) ≈ 1804 A
-
High-voltage side (13.8kV) = 1500 × 1000 ÷ (√3 × 13,800) ≈ 62.8 A
The high-voltage current varies slightly depending on the input voltage (13.2kV, 24.9kV, 34.5kV). Accurate calculations ensure system safety and reliable operation.
5. 1500 kVA Pad Mounted Transformer Dimensions
PowerNex offers multiple dimension options:
-
Standard: L 2.4 m × W 1.2 m × H 2.0 m
-
Extended: L 2.8 m × W 1.5 m × H 2.3 m
-
Customizable to meet project-specific site conditions: underground vaults, confined spaces, or industrial installations

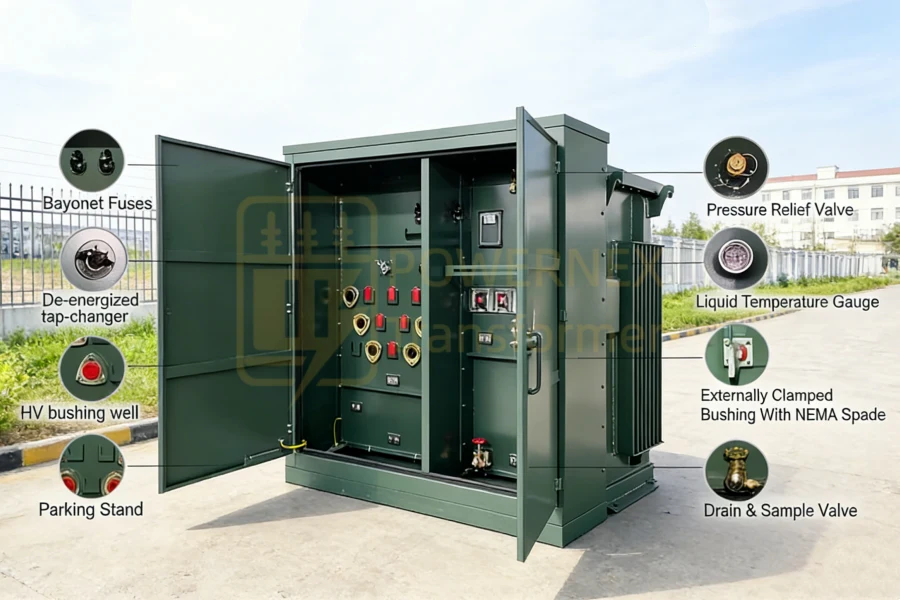

The enclosure is made of corrosion-resistant steel with powder coating, rain hoods, and ventilation ducts for safe operation and heat dissipation.
6. Pricing
The 1500 kVA pad mounted transformer price is highly competitive, offered directly from the PowerNex manufacturing facility in China. Bulk supply is available for North America, South America, Australia, Europe, Asia, and the Middle East.
Price factors include:
-
Voltage level
-
Capacity size
-
Cooling method (ONAN / ONAF)
-
Customized dimensions and protection level
-
Purchase volume
Bulk orders benefit from factory-direct discounts, global certification support, and technical assistance.
7. Chinese Manufacturer Factory

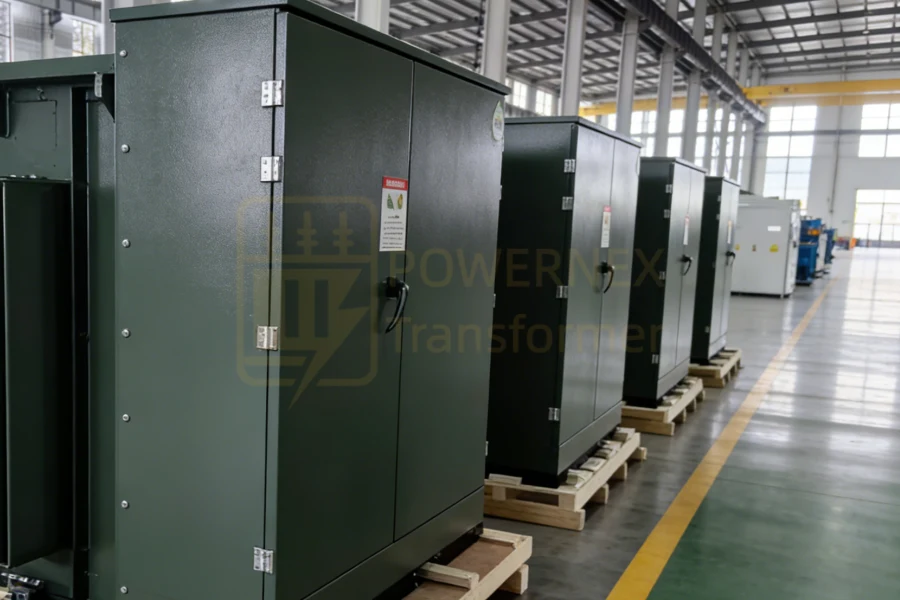

PowerNex 1500 kVA pad mounted transformers are produced in a China-based manufacturing facility with:
-
ISO9001 Quality Management System
-
Advanced production lines for large-scale global orders
-
Fully equipped testing laboratory for performance verification
-
Customization capabilities for special voltage, capacity, dimensions, and protection requirements
8. Global Supplier Network
PowerNex is one of the leading global suppliers of 1500 kVA pad mounted transformers, covering:
-
North America: USA, Canada
-
South America: Brazil, Argentina, Mexico, Guyana
-
Asia-Pacific: Malaysia, Indonesia, Australia
-
Middle East: Saudi Arabia, UAE
-
Europe: UK, Germany, France, Spain, Italy
-
Africa: South Africa

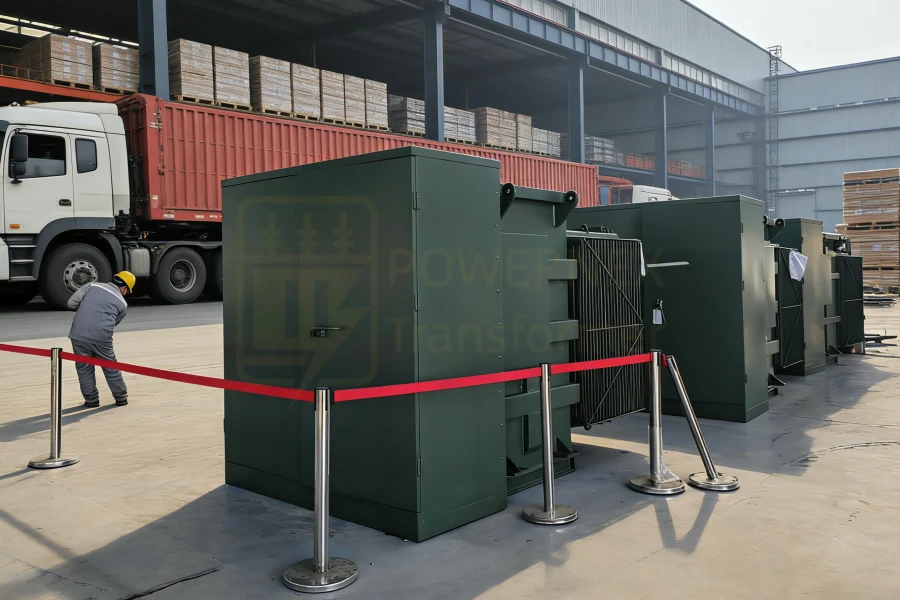

We provide fast delivery, bulk supply, after-sales support, and technical assistance worldwide.
9. Applications
The 1500 kVA pad mounted transformer is widely used in:
-
Industrial plant high-voltage distribution systems
-
Utility underground distribution networks
-
EPC projects and large-scale infrastructure
-
Commercial parks, logistics centers, high-load facilities
-
Special applications: low-noise, energy-saving, corrosion-resistant environments
10. South America Market
PowerNex 1500 kVA transformers have been successfully applied in Brazil, Argentina, Mexico, and Guyana, including:
-
Industrial parks in São Paulo, Brazil
-
Urban underground distribution networks in Buenos Aires, Argentina
-
High-load logistics centers in Mexico
Clients report high efficiency, stable operation, and low maintenance costs.
11. FAQ
Q1: What is the lifespan of the 1500 kVA transformer?
A1: Under standard operating conditions, it can last 30–35 years.
Q2: Is it customizable in voltage and capacity?
A2:Yes,Available in input voltages from 13.2 kV to 34.5 kV, output voltages from 208 V to 600 V, and common capacities including 50 kVA, 225 kVA, 500 kVA, 750 kVA, 1000 kVA, 1500 kVA, 2000 kVA, 2500 kVA, 3000 kVA, and 5000 kVA
Q3: Is it suitable for underground installation?
A3: Yes, fully compliant with underground installation standards, waterproof, dustproof, and corrosion-resistant.
Q4: Does it have global certifications?
A4: Yes, compliant with ANSI, IEEE, IEC, CSA, ISO9001, CE standards.
Q5: Are after-sales service and spare parts available?
A5: Yes, PowerNex provides worldwide technical support and spare parts supply.
12. Testing and Performance Verification
All 1500 kVA transformers undergo strict factory testing, including:
-
Load testing
-
Temperature rise testing
-
Short-circuit withstand testing
-
Noise testing
-
Waterproof, dustproof, and corrosion resistance testing
Only transformers that pass these rigorous tests are shipped to ensure reliability and safety.
13. Installation and Maintenance
-
Installation: Level placement, well-ventilated, protected from water accumulation
-
Routine Maintenance: Periodic checks of oil level, temperature, noise, and connections
-
Long-Term Maintenance: Insulation oil analysis and performance assessment every 5 years
-
Safety Compliance: Follow ANSI/IEEE and local electrical safety standards
14. Customization Options
PowerNex offers the following custom options:
-
Special voltage and capacity configurations
-
Custom enclosure dimensions for underground or confined spaces
-
Low-noise, energy-efficient, corrosion-resistant design
-
Special protection ratings (IP55/IP65)
-
Optional smart monitoring systems for real-time load, temperature, and performance monitoring
15. Advantages
-
High Reliability: Long-term stable operation in harsh environments
-
Global Certification: Meets ANSI, IEEE, IEC, CSA international standards
-
Factory Direct Supply: Competitive pricing, bulk availability
-
Flexible Voltage and Capacity: Adaptable to diverse project requirements
-
Global Delivery Network: Covers North & South America, Europe, Asia, Middle East, Africa
-
Strong Customization: Low-noise, energy-saving, specialized protection options
16. Contact & Procurement
PowerNex provides factory-direct supply, global bulk delivery, and customizable design services for 1500 kVA pad mounted transformers. Suitable for utilities, industrial projects, and EPC applications.
