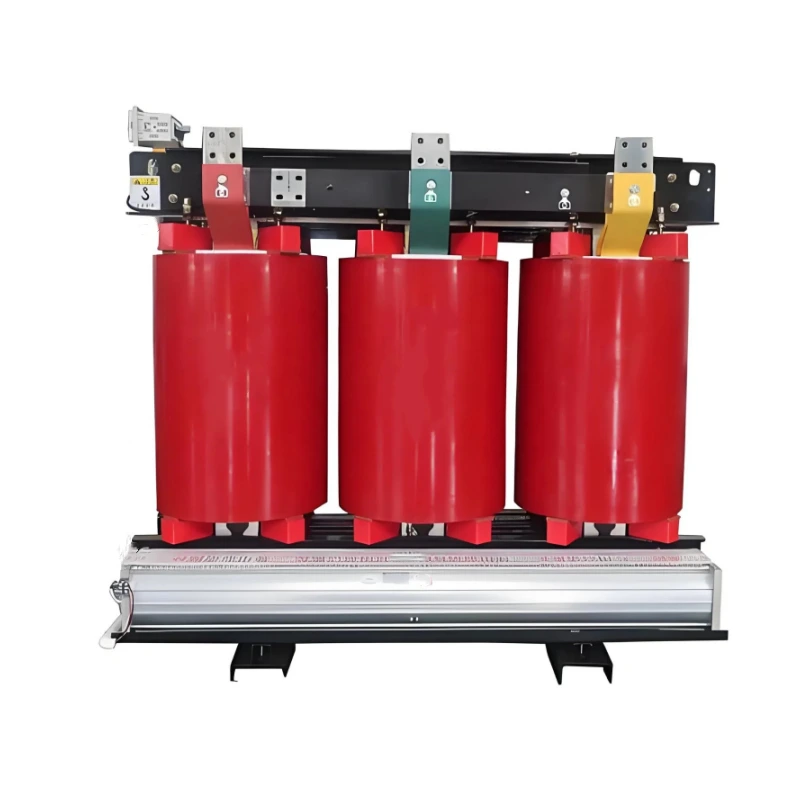

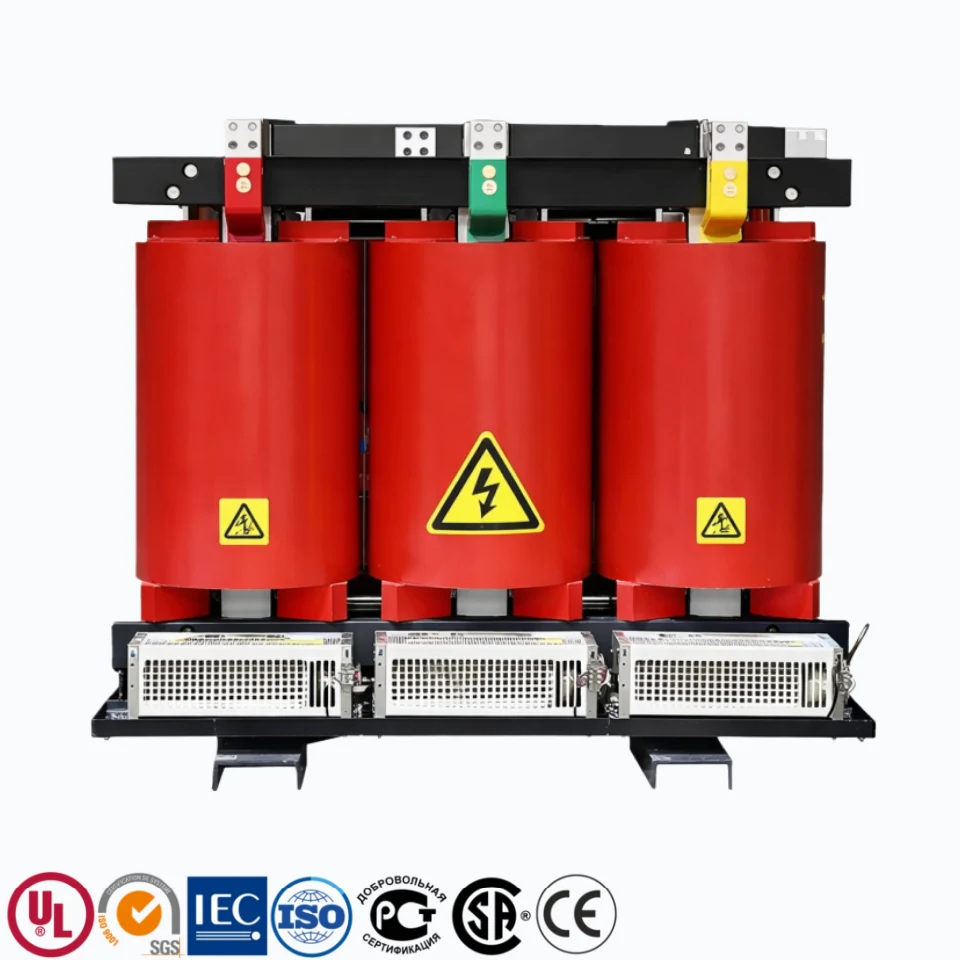

What Does a 2500 kVA Medium Voltage Cast Resin Dry Type Transformer Actually Do?
In modern industrial and commercial power systems, a medium voltage transformer is not just a voltage conversion device, but a critical component that determines system safety, operational stability and long-term energy efficiency. The 2500 kVA medium voltage cast resin dry type transformer is engineered to perform reliable voltage transformation and power distribution in indoor environments where oil-filled transformers are no longer suitable.
This cast resin dry type transformer converts medium voltage power, such as 34.5 kV, to low voltage distribution levels used by industrial equipment, commercial facilities and infrastructure systems. As a high-capacity medium voltage distribution transformer, it supports continuous three phase operation, heavy industrial loads and stable power delivery in demanding environments.
Technical Specifications – How Is This Medium Voltage Dry Type Transformer Configured?
| Item | Specification |
|---|---|
| Rated Capacity | 2500 kVA (expandable range: 800 kVA – 3000 kVA) |
| Transformer Type | Medium Voltage Cast Resin Dry Type Transformer |
| Phase System | Three Phase Power Transformer |
| Primary Voltage | 34.5 kV (10 kV / 11 kV / 13.2 kV / 13.8 kV / 20 kV / 33 kV optional) |
| Secondary Voltage | 400 V / 415 V / 480 V / 480Y/277 V |
| Frequency | 50 Hz / 60 Hz |
| Cooling Method | Air Natural (AN), Air Forced (AF optional) |
| Insulation System | Epoxy Cast Resin, Class F / Class H |
| Voltage Tapping | ±2.5% / ±5% off-circuit tap changer |
| Protection Class | IP20 standard, IP21 / IP23 / IP54 optional |
| Applicable Standards | IEC, CE, ISO, UL optional |
| Installation Type | Indoor medium voltage dry type installation |
Why Is a Cast Resin Dry Type Transformer Preferred for Indoor Medium Voltage Applications?
Indoor power distribution places strict requirements on transformer safety and environmental performance. A cast resin transformer eliminates insulating oil, removing the risks of leakage, fire and environmental contamination associated with oil-immersed transformers.
The epoxy encapsulated windings of this medium voltage dry type transformer provide excellent fire resistance, moisture resistance and insulation stability. This makes the cast resin dry type distribution transformer especially suitable for factories, commercial buildings, hospitals, data centers and transportation infrastructure.
Can This Medium Voltage Distribution Transformer Handle Industrial-Scale Loads?
The 2500 kVA medium voltage distribution transformer is designed for continuous operation under high load conditions. Its three phase dry type construction ensures balanced current flow and stable voltage output, even during load fluctuations caused by heavy machinery or motor-driven equipment.

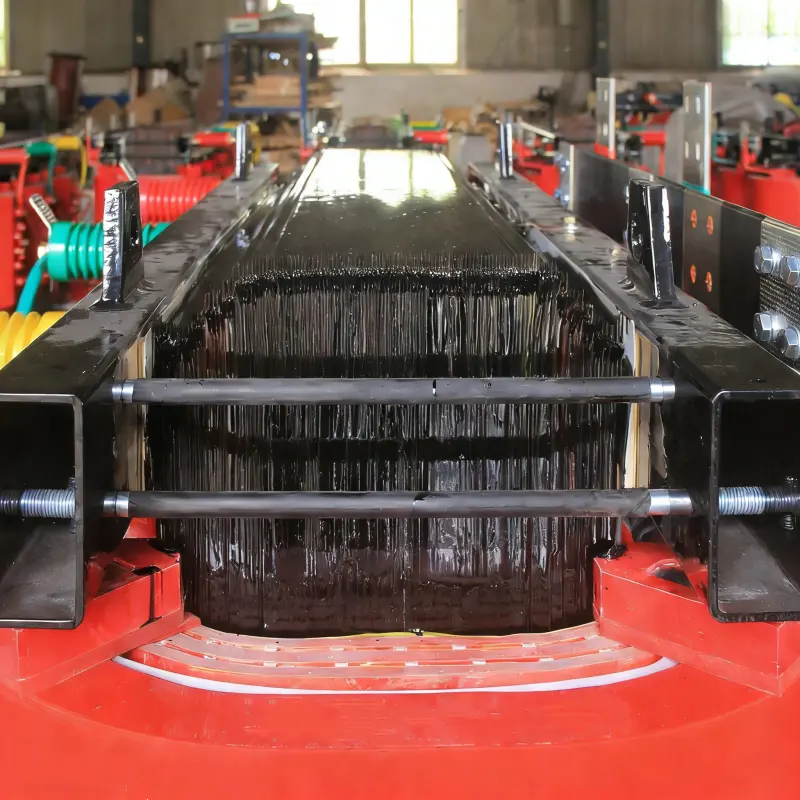

Advanced core design and optimized winding geometry allow this medium voltage power transformer to achieve low losses and high efficiency while maintaining strong short-circuit withstand capability.
How Flexible Is the Voltage and Capacity Design for Different Power Systems?
Every industrial power system has unique electrical requirements. This medium voltage cast resin transformer supports a wide range of voltage configurations and capacity options, making it adaptable to regional grid standards across North America, Europe, the Middle East and Asia-Pacific.
By supporting multiple primary and secondary voltage options, this dry type distribution transformer can be used in both retrofit projects and new power distribution systems.
What Makes This Dry Type Transformer Reliable Over Long-Term Operation?
Reliability in a medium voltage transformer depends on insulation integrity, thermal performance and mechanical strength. The epoxy cast resin insulation system provides consistent dielectric performance and protects windings from environmental stress, while the rigid mechanical structure withstands thermal expansion and electromagnetic forces.
As a result, this cast resin dry type transformer delivers stable performance over a long service life with minimal maintenance.
Is Installation Easier Compared to Oil-Filled Medium Voltage Transformers?
Yes. The oil-free design of this medium voltage dry type power transformer simplifies indoor installation. There is no need for oil containment systems, fire barriers or complex ventilation arrangements typically required for oil-filled transformers.
This reduces installation time and overall project cost, especially in space-constrained indoor substations.
Where Is This Medium Voltage Cast Resin Dry Type Transformer Commonly Used?
The 2500 kVA medium voltage cast resin dry type transformer is widely used across industries, including:
Industrial manufacturing plants and process facilities
Commercial and mixed-use buildings
Data centers and IT infrastructure
Hospitals and healthcare facilities
Transportation and public infrastructure
Utility and renewable energy distribution systems
Its indoor-ready dry type design makes it a preferred medium voltage distribution transformer for safety-critical environments.
Can This Medium Voltage Transformer Be Exported and Certified for Global Markets?
This medium voltage cast resin dry type transformer is designed to meet international standards such as IEC and CE, with optional UL compliance for the U.S. and Canadian markets. It has been successfully supplied to customers in the United States, Canada, Germany, France, Australia, the Middle East, Southeast Asia, South America and Africa.
Global voltage compatibility ensures smooth integration into local power distribution networks.
Is OEM / ODM Customization Available from the Manufacturer?
As a China leading manufacturer, supplier, wholesaler and factory, we provide factory-direct production and comprehensive OEM / ODM customization services. Capacity rating, voltage configuration, insulation class, enclosure protection and branding can all be customized according to project requirements.
Technical support and engineering consultation are available throughout the project lifecycle.
What Should Buyers Consider When Selecting a Medium Voltage Dry Type Transformer?
When selecting a medium voltage dry type transformer, buyers should consider safety requirements, load characteristics, installation environment and long-term operating costs. This 2500 kVA cast resin dry type transformer is designed to balance all these factors, making it a reliable and cost-effective solution for industrial and commercial power distribution.
Conclusion – A High-Ranking Medium Voltage Cast Resin Dry Type Transformer Solution
The 2500 kVA medium voltage cast resin dry type transformer integrates advanced cast resin transformer insulation technology, a robust three phase dry type transformer design, flexible voltage configuration and factory-direct OEM/ODM customization to deliver a safe, reliable and energy-efficient medium voltage power distribution transformer for indoor industrial and commercial applications worldwide.
This medium voltage dry type transformer supports a wide capacity range from 500 kVA, 800 kVA, 1000 kVA, 1500 kVA, 2000 kVA, 2500 kVA up to 3000 kVA, with commonly used primary voltages including 10 kV, 11 kV, 13.2 kV, 13.8 kV, 20 kV, 33 kV and 34.5 kV, and flexible secondary voltage options such as 400 V, 415 V, 480 V and 480Y/277 V, ensuring seamless integration into different regional power grids and industrial power systems.
Designed for global markets, engineered for long-term reliability and manufactured under strict quality control, this cast resin dry type distribution transformer is widely selected for indoor substations, industrial plants, data centers, hospitals, infrastructure projects and commercial power distribution networks. As a China leading medium voltage transformer manufacturer, supplier, wholesaler and factory, we provide factory-direct sales, competitive pricing, fast delivery and comprehensive technical support.
Whether you require a standard medium voltage dry type transformer or a fully customized cast resin power transformer tailored to your project specifications, our engineering team is ready to support your selection, design and procurement process.
Contact us today to request technical consultation, customization options or a competitive quotation for your next medium voltage transformer project — PowerNex.
